Technical Data
- Processor :
- ESP32-S3-N4 R2 SoC, Dual-core Xtensa® 32-bit LX7, up to 240 MHz
- Memory :
- 512 KB of internal SRAM, supports external flash and SRAM
- Wi-Fi :
- 2.4 GHz, IEEE 802.11b/g/n
- Bluetooth :
- Bluetooth® 5 LE and Bluetooth® Mesh
- Camera :
- OV2640 2MP Camera (Built-in)
- Motor Control Pins :
- L1 & L2 Pins: Pin 39, Pin 40, R1 & R2 Pins: Pin 41, Pin 42
- I2C Connectors :
- 4-pin (Gnd, Vcc, Pin 21 SDA, Pin 14 SCL), 6-pin (Gnd, Vcc, Pin 46 LRCK, Pin 45 BLCK, Pin 47 Din & Mic IN, Pin 0 Dout)
- SD Card :
- SD card socket for 1-bit mode data storage
- Power Supply :
- DC Jack: 7-9V DC, 1A, USB Type-C for power and programming
- Battery :
- 2-pin JST male connector for 7.4V Li-ion 2-cell battery
- USB Interface :
- USB C-type for power and programming
- Comm. Protocols :
- I2C, SPI, I2S, UART, CAN
- Temperature Range :
- Typically -40°C to +85°C
- Relative Humidity :
- Typically 10% to 90% non-condensing
- Dimensions :
- 50mm x 50mm
- Board Manufacturer :
- AITinkr
- Country of Origin :
- India
- Manufacturer Address :
- Madhapur, Hyderabad – 500081, Telangana
Features
- Dual-core ESP32-S3 microcontroller with up to 240 MHz clock
- Wi-Fi (2.4 GHz, IEEE 802.11b/g/n) and Bluetooth® 5 LE and Mesh Support
- Built-in 2MP OV2640 Camera for visual input
- Supports 1-bit SD card storage
- I2C and I2S support for various peripherals
- USB C-type interface for power and programming
- Supports external Li-ion 7.4V battery
- Multiple motor control pins for robotic movement
- Programmable GPIO pins for various applications
- Supports ultrasonic sensors with dedicated pins

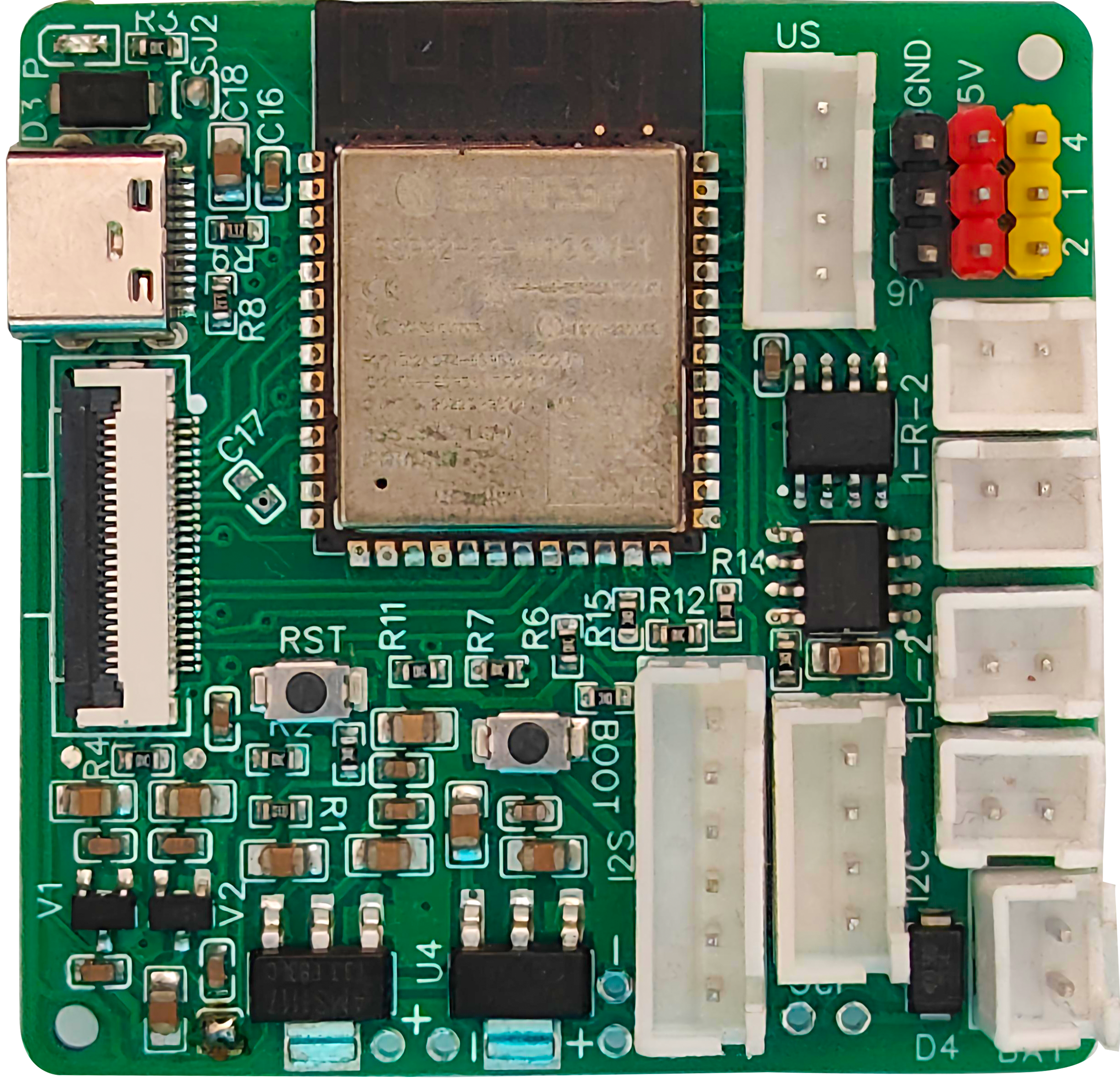

About AIoT GMAC
The AIoT GMAC ESP32 S3 development board is a powerful platform designed for robotics and IoT applications, featuring dual-core processing and advanced connectivity options like Wi-Fi and Bluetooth. It comes with a 2MP camera, SD card storage, and motor control pins, making it an excellent choice for building sophisticated systems.
This development board offers extensive peripheral support, including I2C, I2S, and SPI, enabling the integration of various sensors and devices. It also features a USB Type-C interface for easy programming and powering, along with low-power modes for energy efficiency.
The board is equipped with everything you need to build advanced robots, including motor control, camera input, wireless communication, and data storage, ensuring it is an ideal choice for robotics enthusiasts and developers working on cutting-edge projects.
Applications
- Advanced Robotics Projects
- IoT-based applications and control systems
- Real-time Video Processing with Camera Integration
- Wireless Communication via Bluetooth and Wi-Fi
- Autonomous Robotics with motor control
- Smart Home and Industrial Automation
- Environmental Monitoring and Data Logging
- AI-powered Robotics
- Prototyping for Educational Projects
- Remote Control and Monitoring Applications
